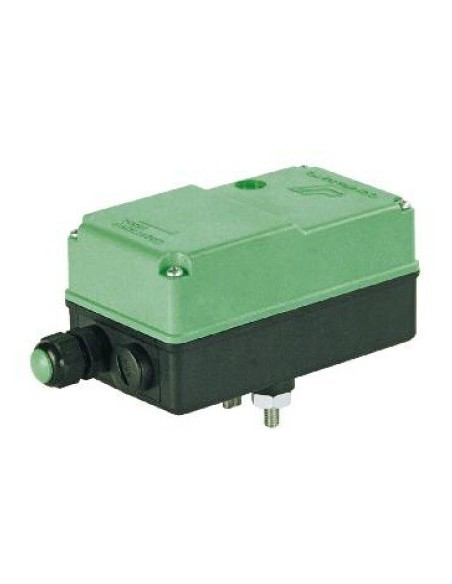

Valve servomotor 2-3 Ways "DIAMANT 2000" 90° Manual Drive

8021222
€188.22 €221.43 -15%
Tax included

Servomotor for "DIAMANT" motorized ball valve with manual operation for zone heating or cooling installations.

For installations that use alternative energies.

For industrial use in general with hot and cold fluids or automation installations.

In the absence of electrical power, they remain in the position in which they were before the lack of power.

Three years warranty

VOLTAJE

Estimated delivery date: No disponible


CHARACTERISTICS OF Valve servomotor 2-3 Ways "DIAMANT 2000" 90° Manual Drive:

  • Power supply: 230V / 24V - 50/60 Hz.
  • Consumption: Between 6 and 13 VA.
  • Degree of protection: IP 65.
  • Maneuvering time: 35 sg <) 90 °. Motor power: 11 Nm.
  • Operating ambient temperature: -10 ° C to + 50 ° C.

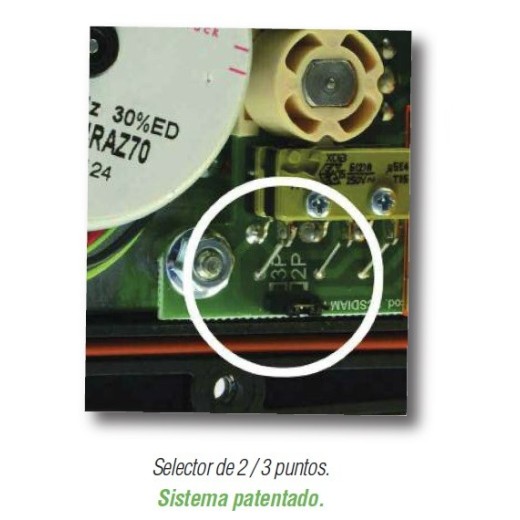

  • Electrical connection: Switch for 2/3 points.

HIGHER MANUAL OPERATION (A.M.)

Models with different opening times and with auxiliary micros are available.

3-way valves with 2 holes <) 180 ° are necessary when the deviated tracks (right and left) must never communicate with each other.
