Kit servomotor + ball valve 3-way "COMPACT PRO"

8033114
€653.40
Tax included

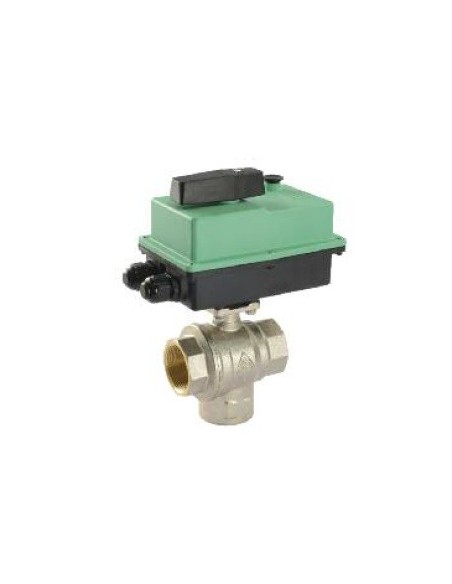

3-way "COMPACT PRO" motorized ball valve and servo motor.

Indicated for use in heating, irrigation, wine industry, food, chemical, pharmaceutical, conditioning, hot and cold fluids, nautical sector, etc ...

PULGADAS
VOLTAJE

Estimated delivery date: No disponible


CHARACTERISTICS OF Kit servomotor + ball valve 3-way "COMPACT PRO":

  • Power supply: 230V / 24V - 50/60 Hz. Consumption: Between 5 and 21 VA.
  • Degree of protection IP67. Maneuvering times: 45 sg <) 90 °.
  • Nominal force on the shaft: 22 Nm.
  • Fluid temperature: -10 ° C to + 110 ° C, -20 ° C to + 110 ° C with spacer.

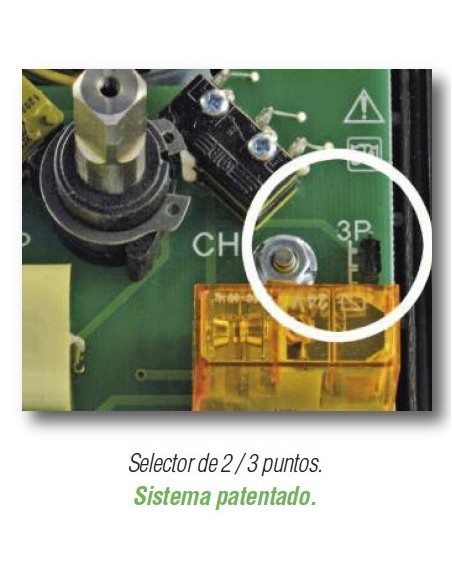

  • Electrical connection: switch for 2/3 points.
  • Connection ISO5211.
  • Robustness of servomotor even in extreme conditions.
  • The standard product includes 2 free auxiliary micros in opening and closing, as well as manual opening in the upper part.
  • Protected type.
  • Equipped with all external components in stainless steel, for use in humid environments, in the presence of condensation or others.
  • Available version of 12 and 24 V continuous current.
