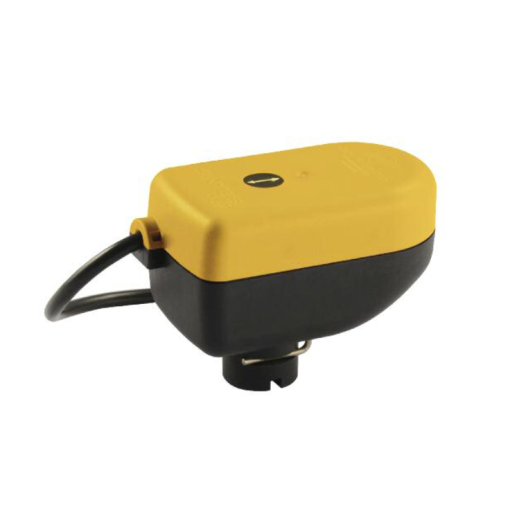

Servomotor "SINTESI SMART" Proportional Control Voltage 0-10V

8000026

SERVOCOMANDO PROPORTIONAL FOR HEATING INSTALLATIONS,
REFRIGERATION AND ACS.

The SINTESI SMART zone valve is specially designed for the specific use in the cutting and regulation of zones in heating installations with or without heat accounting.

For motorized sphere valves "SINTESI" and "PLANA".

Maneuvering time: 30, 60 or 120sg <) 90 ° (depending on version).

TIME OF MANEUVER
Estimated delivery date: No disponible


CHARACTERISTICS OF Servomotor "SINTESI SMART" Proportional Control Voltage 0-10V:

  • Nominal torque on the shaft: 6 Nm. Maximum torque 8 Nm.
  • Maneuvering time: 30, 60 or 120sg <) 90 ° (depending on version).
  • Operating ambient temperature: + 5 ° C + 50 ° C.
  • Voltage: 24Vac / 24Vdc. 3.5 VA consumption.
  • Positioning feedback 2-10Vdc.
  • Degree of protection: IP54.

ADVANTAGES OF YOUR INSTALLATION:

  • "Pressurized" body hook, innovative, simple and safe.
  • Exceptional quality / price / performance ratio.
  • Practical installation, small dimensions.
  • Aging tests with surprising results.
  • High quality Compatibility Three years warranty
  • Quick connection to the valve body.
