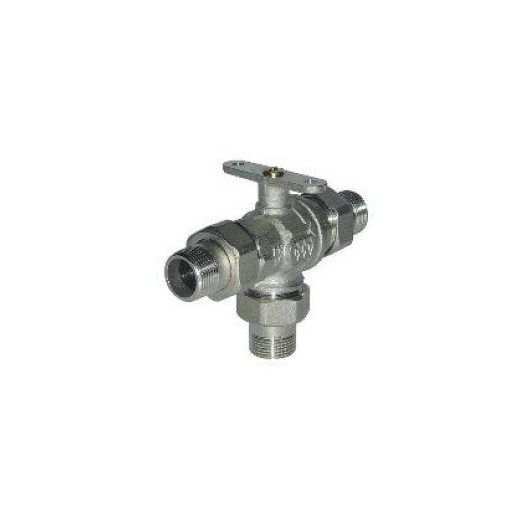

Motorized ball valve "DIAMANT" 3-way connectors and 3 holes - 90º turn

Reference 8030012

€86.39 €101.64 -15%

Tax included

Motorized ball valve for industrial use "DIAMANT", 90º turn.

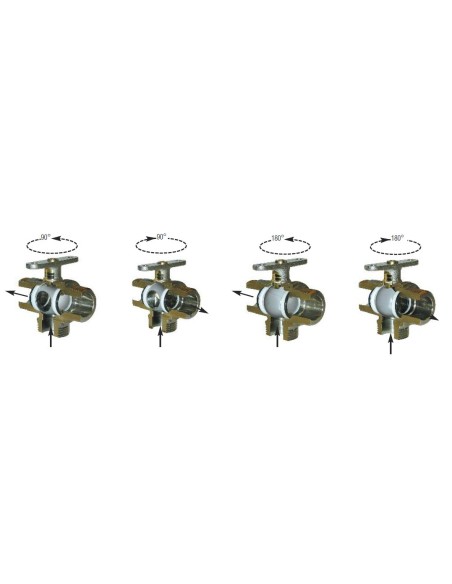

Mixture in maneuver phase.

PULGADAS

Estimated delivery date: No disponible

CHARACTERISTICS OF Motorized ball valve "DIAMANT" 3-way connectors and 3 holes - 90º turn:

Body: Brass CW617N.
Dial: Chrome plated brass CW617N - nickel-plated.
Fitting: PTFE, O-RING EPDM.
Horn: Brass CW617N.
PN / Test pressure: 16 bar / 45 bar.
Maximum differential pressure: 16 bar.
Fluid temperature: -10 ° C to 110 ° C.
Fluid: Compatible with Teflon and EPDM.
