Motorized ball valve "DIAMANT" 3-way connectors and 2 Holes - 180º rotation

Name: Motorized ball valve "DIAMANT" 3-way connectors and 2 Holes - 180º rotation
Brand: GREEN-CALOR
SKU: 8030212
Price: 105.27 EUR
Availability: InStock

Reference 8030212

€105.27

Tax included

3-way motorized ball valve body, for industrial use "DIAMANT", 180º rotation.

PULGADAS

Estimated delivery date: No disponible

Description

CHARACTERISTICS OF Motorized ball valve "DIAMANT" 3-way connectors and 2 Holes - 180º rotation:

Body: Brass CW617N. Dial: Chrome plated brass CW617N - nickel-plated.
Fitting: PTFE, O-RING EPDM. Horn: Brass CW617N.

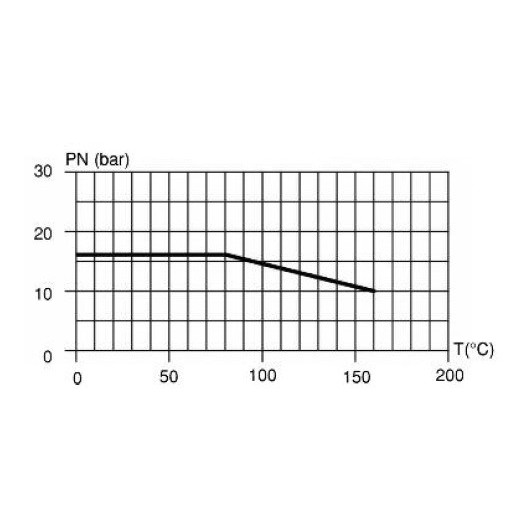

PN / Test pressure: 16 bar / 45 bar. Maximum differential pressure: 16 bar.
Fluid temperature: -10 ° C to 110 ° C.
Fluid: Compatible with Teflon and EPDM.
