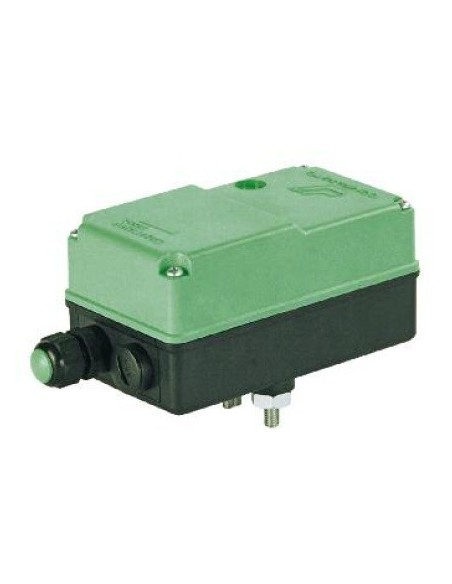

Servomotor for 2-3 Ways Valve "DIAMANT 2000" 90°

8021220
€159.42 €187.55 -15%
Tax included

Servomotor for "DIAMANT" motorized ball valve for zone heating or cooling installations.

For installations that use alternative energies.

For industrial use in general with hot and cold fluids or automation installations.

In the absence of electrical power, they remain in the position in which they were before the lack of power.

Three years warranty

VOLTAJE

Estimated delivery date: No disponible


CHARACTERISTICS OF Servomotor for 2-3 Ways Valve "DIAMANT 2000" 90°:

  • Power supply: 230V / 24V - 50/60 Hz.
  • Consumption: Between 6 and 13 VA.
  • Degree of protection: IP 65.
  • Maneuvering time: 35 sg <) 90 °. Motor power: 11 Nm.
  • Operating ambient temperature: -10 ° C to + 50 ° C.

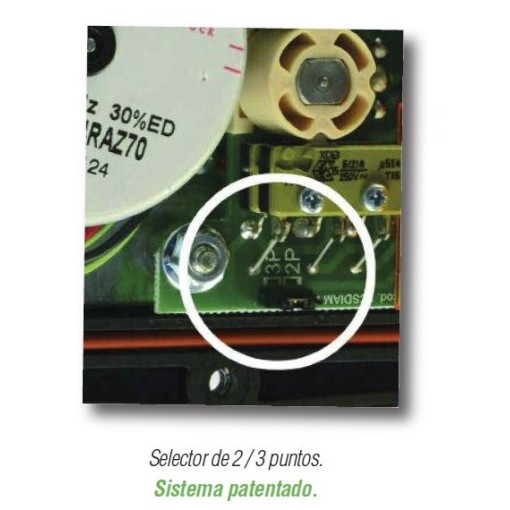

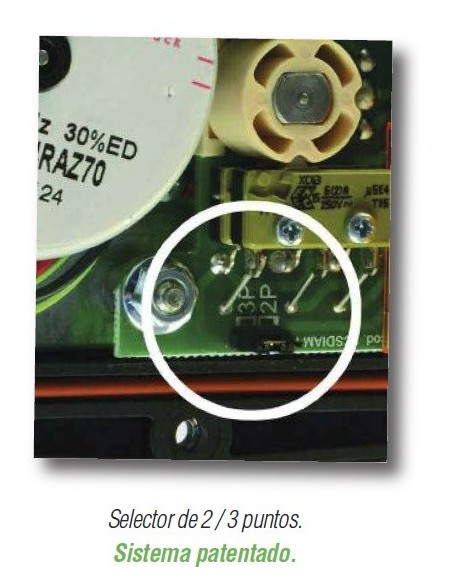

  • Electrical connection: Switch for 2/3 points.
