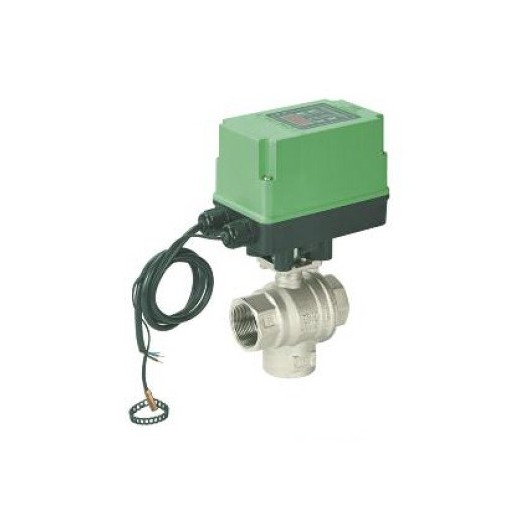

3-way valve Mixer / Regulatory "DIAMIX" M-M-M lugged
8035034
€568.70
Tax included

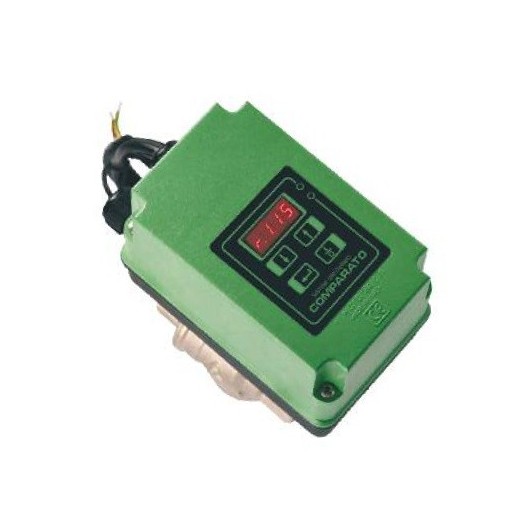

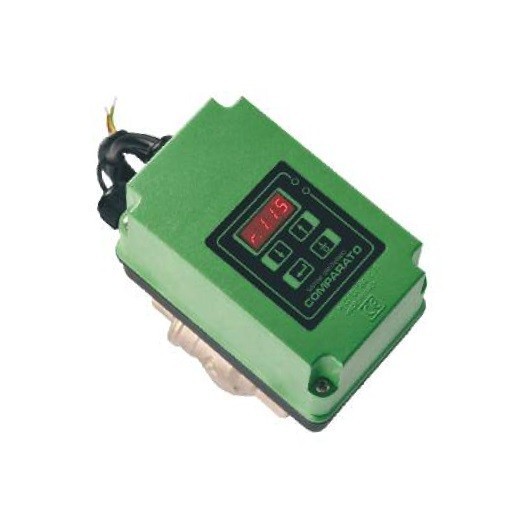

Mixing / regulating valve with fittings, controlled by microprocessor with temperature sensor.
Used in cases where it is necessary to maintain, with high reliability, a fluid at a constant temperature, between -15 and + 85 ° C, regardless of the pressure, inlet temperature and selected flow rate.
Connections with female thread.

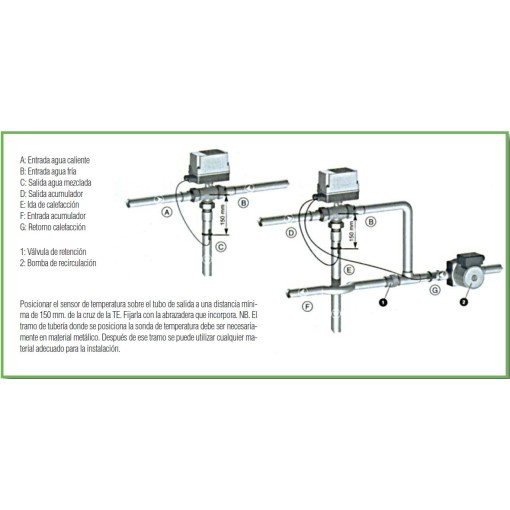

It incorporates a temperature probe at the outlet of the mixed water.
Estimated delivery date: No disponible
CHARACTERISTICS OF 3-way valve Mixer / Regulatory "DIAMIX" M-M-M lugged:
- Power 230V - 50 Hz
- Ambient temperature - 10 ° C to + 50 ° C
- Regulation field - 15 ° C to + 85 ° C
- Maneuvering time: 35 sec.
- IP67
