Contact thermostat TB060

TB060
€31.14 €44.48 -30%
Tax included
Si no sabes qué elegir
¿Qué termostato necesito? Flecha

Contact thermostat for placement attached to the pipe.

With side wheel for temperature adjustment.

It is designed for the control and regulation of temperatures in contact with curved surfaces and boiler pipes with diameters of 3/4 "to 3".

Supplied with a spring clamp for fixing to the tube.

Temperature range: 30º-90ºC

Estimated delivery date: 16 March 2026


CHARACTERISTICS Contact thermostat TB060:

  • Output with 1 potential-free switched contact: 16 (5) A / 250V AC
  • Fixed differential ON / OFF operation 4/8 ° C
  • Contact material: AgNi 90/10.
  • Fixing by means of spring clamp.
  • Graduated scale with indication of the regulation
  • 1 Temperature level with continuous regulation
  • Assembly in tubes with elastic strip
  • Graduated scale from 30 ° C to 90 ° C.
  • Maximum body temperature: 80 ° C.
  • Degree of protection IP20

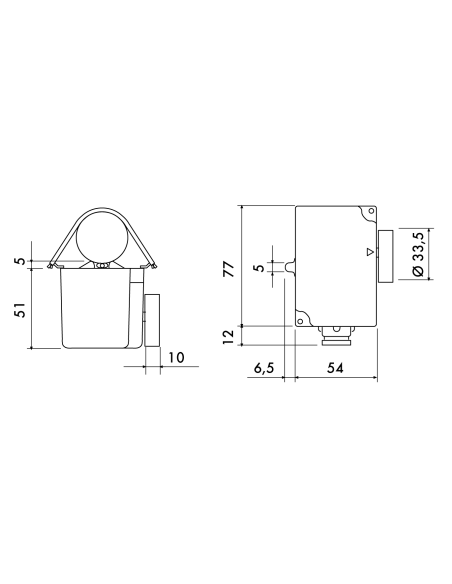

  • Dimensions (AxPxH) 54 x 56 x 99 mm.
