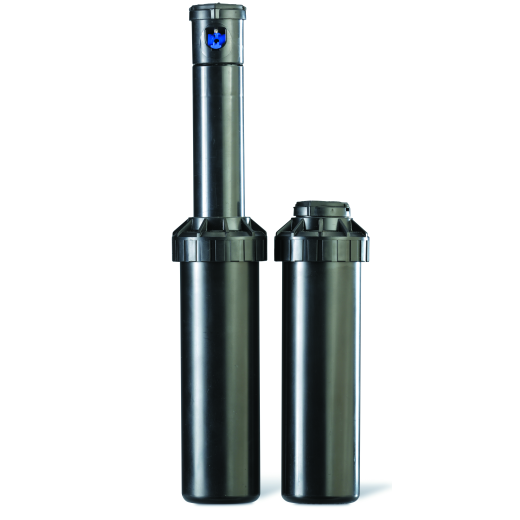

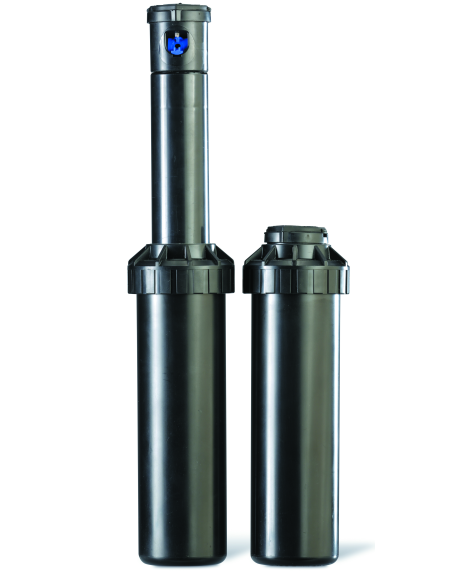

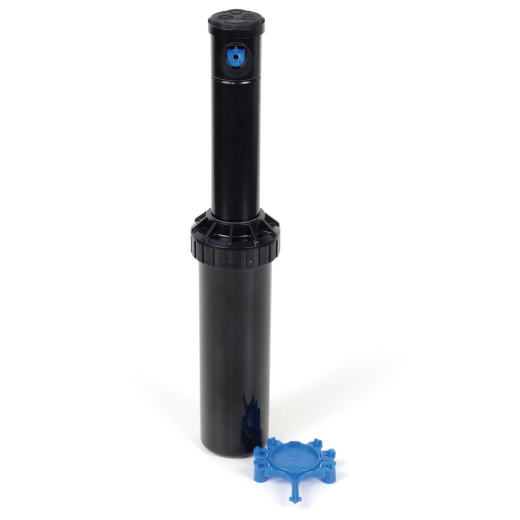

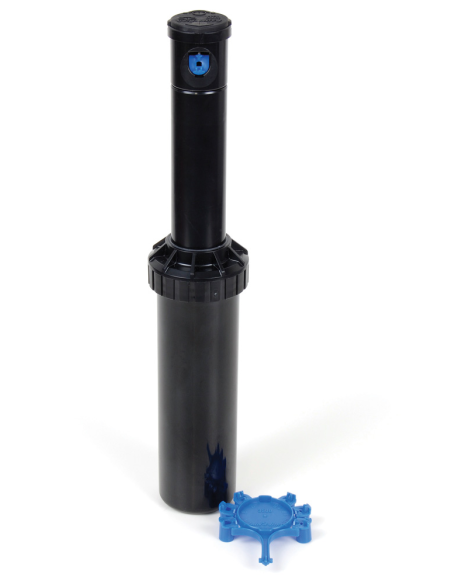

Sprinkler 3500 Series Sector 1/2" 3504-PC-SAM RAIN-BIRD

CHARACTERISTICS Sprinkler 3500 Series Sector 1/2" 3504-PC-SAM RAIN-BIRD:

• Range: 4.6-10.7 m.
• Minimum range using range reduction screw: 2.9m.
• Pressure: 1.7-3.8 bar
• Flow: 0.12-1.04m3 / h
• 1/2 ”female threaded socket (15/21)
• Sector setting: 40 ° -360 °

Rain Curtain ™ Nozzle Technology:

• Supplied with a shaft of six Rain Curtain ™ uniformity nozzles that provide:
• Oversized drops for better performance.
• Effective irrigation in the areas near the sprinkler.
• Even distribution throughout the entire range.

 Instalation and maintenance:

• Regulation of the sector from the top using a simple flat-blade screwdriver.
• Jet adjustment screw that reduces the reach by 25% without changing the nozzle.
• Check Arc / Fast forward function.
• Self-adjusting stator that does not need to be replaced when changing the nozzle.
• Filter that can be easily removed.
• Easily interchangeable nozzles.

 Design Solutions:

• Available in 10.2 cm emergency height and with SAM anti-drain valve.
• Model with integrated SAM (Seal-A-Matic ™) anti-drain valve that retains up to 2.1m lift height to prevent rots and erosion caused by drainage in low areas.
• Rubber cap and sector adjustment screw with self-cleaning function that increases reliability.
• Sector sprinkler (40º-360º) and circulate with return in the same unit.

 Durability:

• Water-lubricated turbine mechanism for long-lasting and reliable operation.
• Multifunctional cleaning board.
