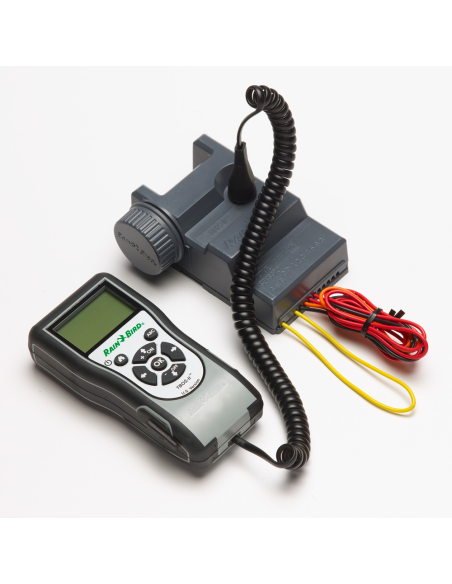

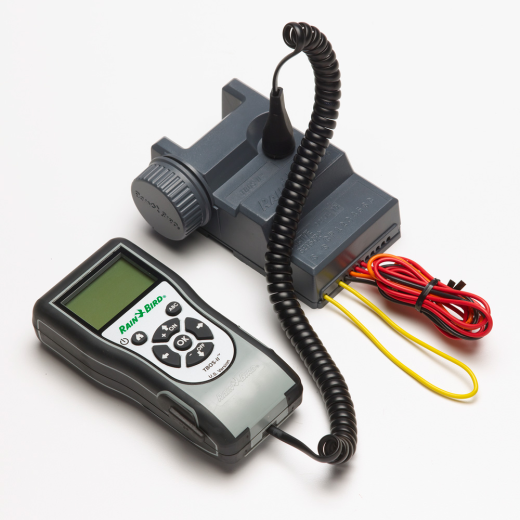

Console TBOS-II RAIN BIRD GB

CHARACTERISTICS Console TBOS-II RAIN BIRD GB:

The new TBOS-II programming console has a new user interface in 8 languages.

Fully compatible with previous models, it allows to control the new TBOS-II connection boxes, in addition to the old TBOS boxes.

New Function: If you are thinking of centralizing your system, the TBOS-II programming console is the tool you need to configure the system.

Backward Compatibility:

• Fully backward compatible. It works in standard infrared mode with the full range of Rain Bird TBOS controllers manufactured since 1999.
• It works in radio mode with TBOS-II connection boxes as well as with TBOS connection boxes equipped with a TBOS-II radio module.

Field transmitter with infrared and radio connection

• The TBOS-II Programming Console allows you to program an unlimited number of TBOS-II and / or TBOS junction boxes.
• You can stream the programs via infrared or radio connection.

Easy to program

• New user interface with drop-down menu and direct access to the main screen to facilitate navigation.
• User interface in 8 languages: English, French, Spanish, Portuguese, German, Italian, Turkish and Greek.
• Very complete manual watering mode.
• Integrated identifier that can be modified (the names of the programming consoles, the connection boxes and the stations can be customized).
• Up to 3 program templates can be saved in the programming console to facilitate the programming process.

PROGRAMMING FEATURES

• Time in AM / PM or 24-hour format.
• The low battery indicator indicates that the batteries are depleted on the TBOS-II Programming Console, the TBOS-II Junction Box, or the TBOS-II Radio Module.
• Possibility of deleting irrigation programs (individual or all) from the control module.
• Possibility of reviewing the irrigation program.
• The basic programming includes 3 independent programs, A, B and C, each with 8 start times per day.
• Stations can be assigned to various programs with different run times.
• Watering time can range from 1 minute to 12 hours in 1 minute increments.
• The independent operation of the stations allows sequential start times to be set (with stacked processing in case of overlap).
• Adjustment of program level and monthly season; 0% to 300% (in 1% increments).
• Five cycle modes (custom cycle, even days, odd days, odd days, and 31, cyclical) that can be selected by program to offer maximum flexibility and to respect watering restrictions.
• Rain delay from 1 to 14 days (even if connected by infrared in a TBOS connection box).
• The master valve and rain sensor can be configured for each individual station (on 2-, 4-, and 6-station TBOS-II junction boxes only).
• 3 TBOS program backups can be saved in the TBOS-II connection box or the TBOS-II radio module which can then be restored manually or automatically.
• The watering schedule is not lost by changing the battery (only a field transmitter connection is needed to set the correct date and time).

SPECIFICATIONS

• The programming console is necessary to search, designate and program connection boxes and radio-marking.
• Backlit monochrome LCD display (128 x 54 pixels).
• Rechargeable battery pack (NiMH 750 mAh 2.4 V) + power connector.
• Removable infrared cable.
• Internal radio antenna.
• Operating temperature: -10 ° to + 65 ° C.
• Sealed with IP44 degree of protection that protects against splashing water.
• Drop-down menu with direct access to the main screen.
• Supports infrared or radio communication with current TBOS and TBOS-II junction boxes that are equipped with a TBOS-II radio module.
• The programming console is necessary to search, designate and configure radio relays on site and in radio-marking if the system is centralized in IQ V2.

MEASUREMENTS

• Height: 16.0 cm.
• Width: 7.0 cm.
• Depth: 3.0 cm.
• Weight: 250 g.
