Reduced price! CODO DE 90º DOBLE PARED DINAK Expand

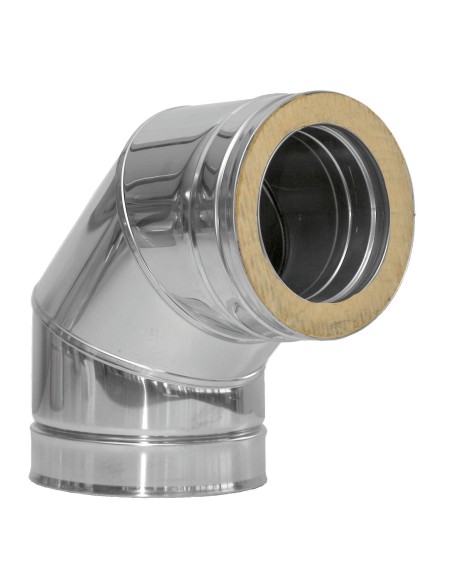

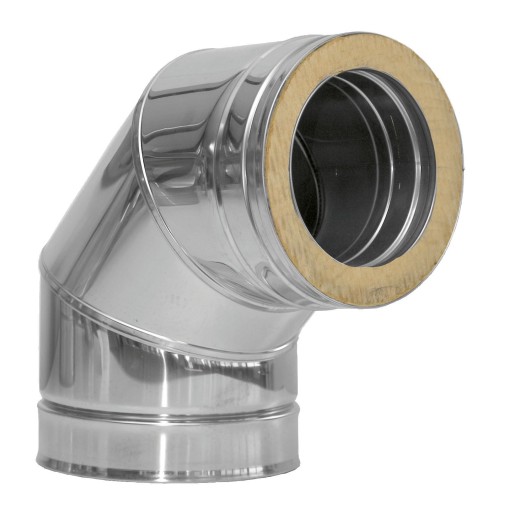

Elbow 90º Double Wall DINAK

DINAK DINAK


New

90° elbow designed to allow the change of direction and adaptation to the desired evacuation path.

More details

Estimated delivery date: 16 December 2024
PRODUCTO EN STOCK
4/5 business days international shipping

188.61 €

tax incl.

235.77 €

-20%

CHARACTERISTICS OF DINAK DOUBLE WALL CHIMNEYS:

MOST COMMON APPLICATIONS:

  • Output of boiler fumes for the production of heating and DHW.
  • Exit of industrial boiler fumes.
  • Confectionery ovens and bakeries.
  • Fireplaces in rooms of private homes (living room, dining room, kitchens, etc ...).
  • Outputs of hot air generators.
  • In general, conduction, ventilation and evacuation of air, smoke, etc.

MANUFACTURED WITH FIRST QUALITY MATERIALS:

Interior wall:

  •     Stainless steel AISI 304
  •     Stainless steel AISI 316L


Isolation:

  •     Rock wool of 30 mm.
  •     In unions: rock wool.
  •     Lacquered finish according to the R.A.L range.


Exterior wall:

  •     AISI 30 stainless steel.
  •     Stainless steel AISI 316L (corrosive or marine environments).
  •     Copper and Aluminized Steel

SUITABLE FOR COMBUSTIBLES:

  • Gas, Diesel (S≤0.2%)
  • Natural wood

PROPERTIES:

  •     Continuous isolation.
  •     Seal tightness.
  •     High mechanical resistance to stresses, both vertical and horizontal.
  •     Thermal bridge absent.
  •     Materials classified category A1.
  •     Availability of diameters between 80 and 1200 mm.


MAXIMUM TEMPERATURE: 600º C

MAXIMUM OVERPRESSURE: 40 Pa
