Te Con Inspección Circular Tapa DW PELLETS DINAK
  • -20%

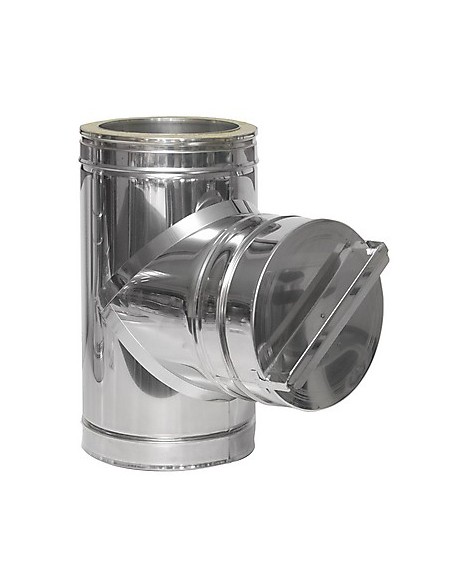

Te Con Inspección Circular Tapa DW PELLETS DINAK

Te with circular inspection lid DW PELLETS DINAK

030108523DW
€260.78 €325.97 -20%
Tax included

T 90º with easy access inspection and circular lid.

Double wall isolated. Optional sealing gasket.

The entire DW PELLETS range is suitable for pellet stoves and an external conduit installation.

Its insulation prevents the cooling of the gases allowing an optimal and stable draft in the duct.

The manufacturing system allows the free expansion of the interior wall.

Measure in mm

Estimated delivery date: 23 May 2025


CHARACTERISTICS OF Te with circular inspection lid DW PELLETS DINAK:

  • Interior wall: plasma welding.
  • Transfer of 40 mm. between elements.
  • Continuous insulation.
  • High mechanical resistance to vertical and horizontal stresses.
  • Availability of diameters from 80 to 600 mm.
  • Maximum overpressure 200 Pa (P1).
  • Temperature level T200 (up to 200 ºC).
  • Resistance to corrosion V2.

MOST COMMON APPLICATIONS:

Domestic and industrial condensing boilers, gas and diesel fuels.


MANUFACTURED WITH FIRST QUALITY MATERIALS:

Interior wall:

  • Stainless steel AISI 316L (1.4404)

Exterior wall:

  • AISI 304 (1.4301)
  • AISI 316L (1.4404), corrosive or marine environments
  • Copper, galvanized steel (for indoor installations)

Isolation:

  • 30 mm rock wool.
  • In unions: rock wool.
  • Lacquered finish according to the R.A.L. range.
