Anclaje Doble A Forjado 180º Con Tornilleria DW PELLETS DINAK
  • -20%
Anclaje Doble A Forjado 180º Con Tornilleria DW PELLETS DINAK

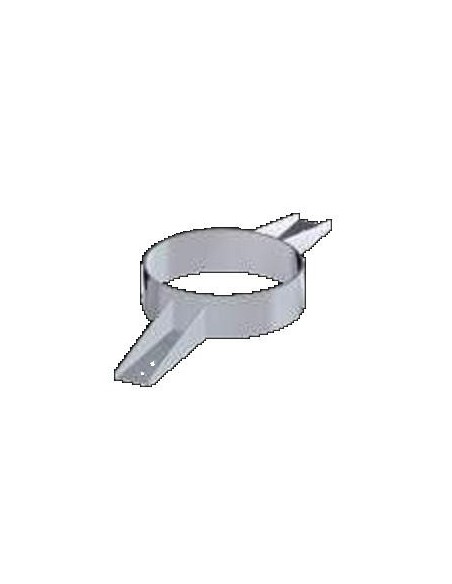

Double anchoring to 180º forging with screws DW PELLETS DINAK

030908903DW
€72.23 €90.29 -20%
Tax included

Double anchoring to 180º forging with DW PELLETS screws suitable for pellet stoves and an external duct installation.

The entire DW PELLETS range is suitable for pellet stoves and an external conduit installation.

Its insulation prevents the cooling of the gases allowing an optimal and stable draft in the duct.

The manufacturing system allows the free expansion of the interior wall.


Measure in mm

Estimated delivery date: 20 March 2026


CHARACTERISTICS OF Double anchoring to 180º forging with screws DW PELLETS DINAK:

  • Interior wall: plasma welding.
  • Transfer of 40 mm. between elements.
  • Continuous insulation.
  • High mechanical resistance to vertical and horizontal stresses.
  • Availability of diameters from 80 to 600 mm.
  • Maximum overpressure 200 Pa (P1).
  • Temperature level T200 (up to 200 ºC).
  • Resistance to corrosion V2.

MOST COMMON APPLICATIONS:

Domestic and industrial condensing boilers, gas and diesel fuels.


MANUFACTURED WITH FIRST QUALITY MATERIALS:

Interior wall:

  • Stainless steel AISI 316L (1.4404)

Exterior wall:

  • AISI 304 (1.4301)
  • AISI 316L (1.4404), corrosive or marine environments
  • Copper, galvanized steel (for indoor installations)

Isolation:

  • 30 mm rock wool.
  • In unions: rock wool.
  • Lacquered finish according to the R.A.L. range.
